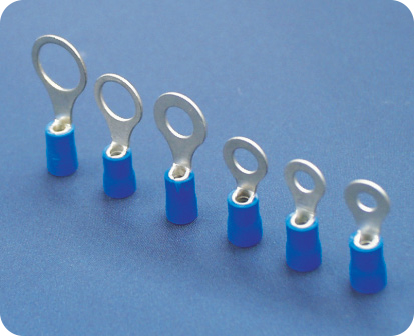

INSULATED RING CABLE LUGS (DIN 46237) 5.5-13.6

INSULATED RING CABLE LUGS (DIN 46237) 5.5-13.6

INSULATED RING CABLE LUGS (DIN 46237) 5.5-13.6 - Image 2

INSULATED RING CABLE LUGS (DIN 46237) 5.5-13.6

INSULATED RING CABLE LUGS (DIN 46237) 5.5-13.6

They are used for terminating stranded conductors with smaller cross-sections and for connecting components of electrical circuits.

Description

Code No.	Designation (mm2/ screw M)	L (mm)	K (mm)	Packaging pcs.	Weight g/100 pcs
1000253	FOP-2,5/3	21,6	5,5	100/1500	94
1000254	FOP-2,5/4	21,6	8,5	100/1500	78
1000255	FOP-2,5/5	22,2	9,5	100/1500	88
1000256	FOP-2,5/6	27,0	12,0	100/1000	126
1000258	FOP-2,5/8	27,0	12,0	100/1 000	98
1000259	FOP-2,5/10	31,0	13,6	100/1000	108

INSULATED RING CABLE LUGS (DIN 46237) 5.5-13.6
